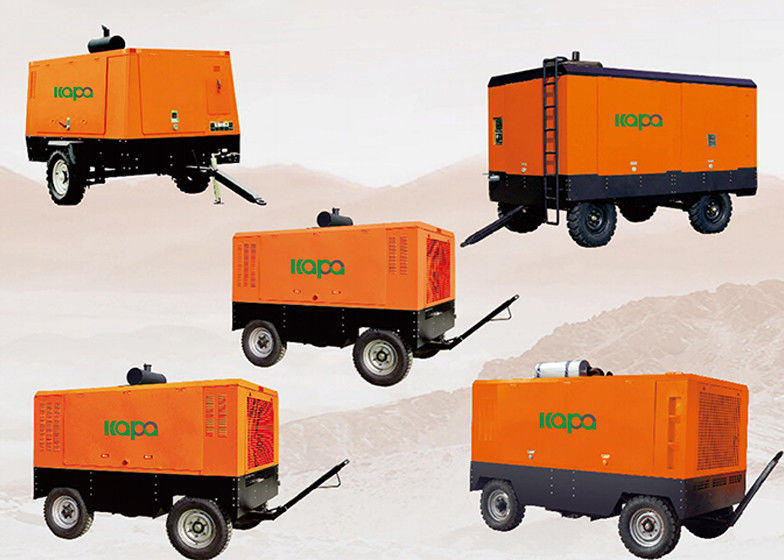

Diesel Driven 260HP 2.0Mpa Portable Screw Air Compressor
Diesel Portable air compressor Advantages
1.World advanced screw compressor with the features of highly efficiency,low maintenance and long lifetime.
2.Microcomputor control system to automatically control the start and top the machine and adjust the air capacity.
3.Conplete protection function with fault alarm and indication
4.Efficient filtering and seperating system.
5.Large oil-after cooler ensures the machines in optimum operation temperature when the ambient temperature is high.
6.Efficient air-cooled enclosed motor.
7.Super low noise.
The Features of the Diesel Portable Air Compressor
2.Air end-large diameter rotor of the portable air compressor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotate speed is same with the diesel engine's, more longer lifespan
3.Diesel engine-select the diesel engine of CUMMINS brand for this diesel portable air compressor, satisfy the emission requirement of Europe, low oil consumption, after sale service system all over China.
4.Good adaptability-The diesel portable lg air compressor automatically control the air delivery of diesel engine by matching the demand of air consumption, which equal to frequency conversion control in motor power portable lg air compressor
| Diesel engine portable screw air compressor | |
| Model | portable screw air compressor |
| Air delivery ( m3/min) | 20 |
| Working pressure ( Mpa) | 2.0 |
| Weight(kg) | 4500 |
| Size(mm) | 3650x1800x2150 |
| Type | Diesel Driven |
| Way breathing | supercharged and mid-cooling |
| Rated power kW(HP) | 191(260) |
Helps save oil consumption by 100 L per day.
Three-level air filtration system
Three-level oil and air separation system
Lubricant filter with a precision of 10 μ
Highly efficient refrigeration system
Axial flow valve
Fully enclosed chassis and soundproof enclosure
A single hanging ring on top is easy for loading and unloading purposes
Heavy-duty portable chassis
Microcomputer-controlled interface
Special lubricant for air compressors
Designed with a maximum pressure of 40 bar
Rotary: The SKY 2 Screw Engine is a patented rotary with the highest efficiency. Its high pressure ensures its large displacement.
Two-stage compression: its flexible design, which is a world-class patented invention, is compatible to poppet valves.
With the heavy-duty SKF bearing and the direct drive in place, it provides noiseless gearwheels.
With its optimal structure, it provides the most reliable performance.
With a switch design for dual working conditions, users may choose the working conditions of 33 m3 at a pressure of 2.5 MPa, or the working conditions of 25 m3 at a pressure of 3.5 MPa. The switch can be done easily and quickly.
Variable fuel injection system: direct fuel injection of high pressure common rail.
It can be equipped with heavy-duty electric diesel injection engines, including Cummins and Yuchai. Based on the loading conditions, oil injection can be electronically and precisely controlled, thus ensuring the best combustion state during the entire operation of an engine. This product features combustion that is more economical with better reliability and stronger dynamic performance.
Patented SKY 2-40 Air Compressors
Heavy-duty electric diesel injection engine
Compressor controller
Soundproof enclosure
Eco-friendly and fully-enclosed chassis
Heavy-duty air filter
High-capacity fuel tank
Air compressors with dual working conditions
Diesel engine
After-cooler
Air and water separation and drain valve
Fuel heating system
Remote control system
